LeadWorld Automatic Stacking Packing Line Servo Driven Palletizer

Ask Lasest Price
Brand Name :	LeardWorld
Supply Ability :	500 Set/Sets per Year According to your packaging line to design
Price :	$21,000.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

LeadWorld Automatic Stacking Packing Line Servo Driven Palletizer

Features:

1. Automatic Palletizing of cartons and plastic boxes; 2. The main lifting table is driven by a servo motor, and the operation is flexible and smooth; 3. The Machine structure: The main part of the machine is composed of the double-speed belt, pallet stack area, box-sorting area, Automatic Pallet supply system, hoisting machine, outbound chain conveyor system, etc. 4. The Palletizing size and height can be adjusted freely; 5. Siemens PLC control system, mobile man-machine interface, and automatic fault display are adopted; 6. It can be used in food, beverage, daily chemical, and other industries;

	LW-PSS10A	LW-PSS10D	LW-PSG30	LW-PSG60
Capacity	5-12cartons/min	5-10cartons/min	20-30cartons/min	40-60cartons/min
Pallet size	L1200x W1200 x 150(mm)	L1200x W1200x 150(mm)	L1200x W1200x 150(mm)	L1200xW1200x150(mm)
Stacking way	Servo	Servo	Gantry	Gantry
Stacking H	≤1800mm	≤1900mm	≤2000mm	≤2000mm
Equipmen size	380010001400mm	2620 * 2440 x 3500mm	L8400 x W4700xH3700mm	L8400xW5300xH3700mm
Power	380V 7KW	380v/3P 7.2kw	380v/3P 11kw	380v/3P 12kw
Air consumption	0.8m3/min	210L/min 6kg/cm²	110L/min 6kg/cm²	180L/min 6kg/cm²
Conveyor H	650mm	650mm	850mm	850mm
Palletconveyor H	300mm	650mm	650mm	650mm
Max weight	1000KG	1500KG	1500KG	1500KG

The Palletizing machine is used to stack the cartons or barrels loaded into containers on pallets (wooden) according to a certain arrangement for automatic stacking, which can be stacked in multiple layers and then pushed out, so as to facilitate the transportation of forklifts to the warehouse for storage. The equipment adopts PLC + touch screen control to realize intelligent operation management, simple operation, easy maintenance, and automatic fault alarm. Greatly reduce labor personnel and labor intensity.

Servo Palletizing Device

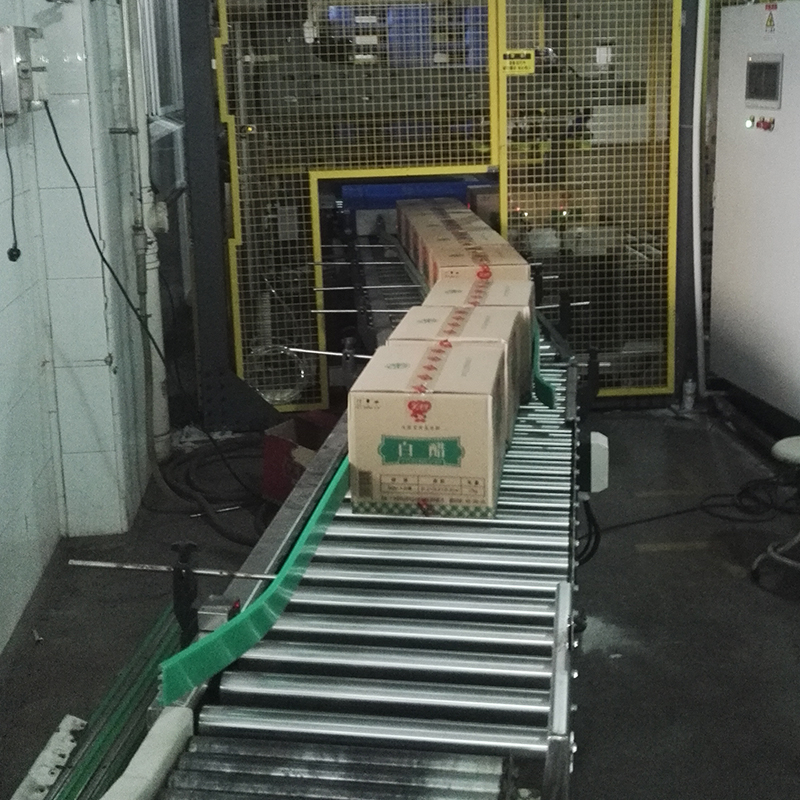

Carton Inbound Conveyors

Carton Palletizer Area

Stack Outbound Chain Conveyor System

Siemens PLC control system

1. Adopt Siemens PLC touch screen control system to realize man-machine integrated control;

2. Intelligent display production speed

3. Fault cause and location query

Automatic Empty Pallet Supply System

1.Large capacity of the empty pallet: 12-15 pcs empty pallets can be provided each times

2. Can be customized for the size

3. Intelligent automatic supply control system

Palletizing area with guards

1.The protective door and protective cover are equipped with electrical induction devices

2.When the protective door is opened, the machine stops working to ensure the safety of the operator

Servo palletizing device

1. The vacuum suction cup is used to grasp more firmly

2. the grasping head can be replaced

3. the number of grasping heads can be customized

4. Smart Servo motor, any palletizing type can be completed, and the operation is flexible and smooth

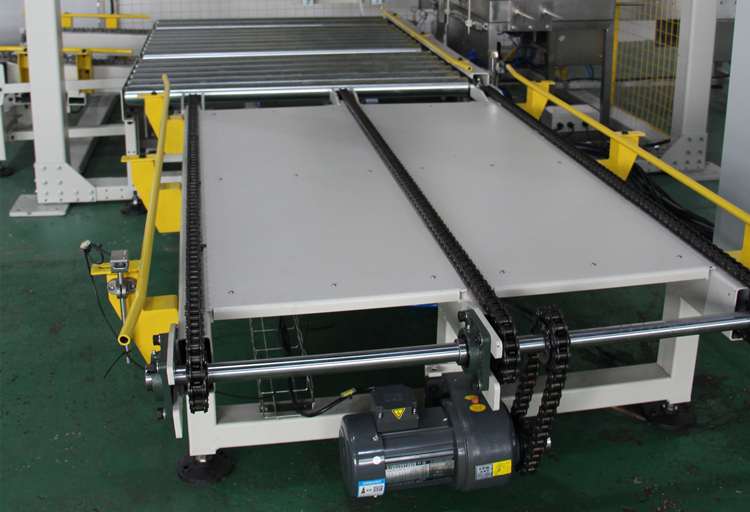

stack outbound chain conveyor system

After the palletizing is completed, it will enter the next workflow by passing through the stacking outbound chain conveyor system

We have successively cooperated with many companies in the United States, Europe, and other countries to develop automated production equipment with a high starting point and advanced technology. The main core accessories use internationally renowned brands, which can provide you with your choice Long-term and reliable guarantee.

Packaging Shipping

FAQ

Q. Are you a manufacturer or trading company? A: Yes, We are a manufacturer verified by ALIBABA, and our R&D and Production team have 30 years of a customized experience Q: What are your company’s main products? A: focusing on automated canning and filling, The research and development, production, sales, and service of packaging production line equipment. E.g Bottle Washer, Filling Machine, Case Packer, case erecter, Palletizer(De-palletizer), Sealing Machine, Labeling Machine, Vacuum Packaging Machine, conveyors, etc. Q: Where are you located? Is it convenient to visit you? A: Yes, We are located in Shanghai, and traffic is very convenient. Welcome to our factory anytime Q: Can you design the machine according to our requirements? A: Of course. We not only can customize the machine according to your technical drawing but also can the new machine according to your requirements. Q: Can you offer overseas technical support? A: Yes. We can send the engineer to your company to set up the machine and train your worker if needed. If you have more questions about our product, please send us an inquiry below. Commonly, you will get a reply in 6 hours. Thank you
