    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer

    Ask Lasest Price
    Brand Name : LeardWorld
    Supply Ability : 500 Set/Sets per Year According to your packaging line to design
    Price : Price Negotiable
    • Product Details
    • Company Profile

    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer

    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer​

    The Palletizing machine is used to stack the cartons or barrels loaded into containers on pallets (wooden) according to a certain arrangement for automatic stacking, which can be stacked in multiple layers and then pushed out, so as to facilitate the transportation of forklifts to the warehouse for storage. The equipment adopts PLC + touch screen control to realize intelligent operation management, simple operation, easy maintenance, and automatic fault alarm. Greatly reduce labor personnel and labor intensity.
    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer
    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer
    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer
    LW-PSS10A
    LW-PSS10D
    LW-PSG30
    LW-PSG60
    Capacity
    5-12cartons/min
    5-10cartons/min
    20-30cartons/min
    40-60cartons/min
    Pallet size
    L1200x W1200 x 150(mm)
    L1200x W1200x 150(mm)
    L1200x W1200x 150(mm)
    L1200xW1200x150(mm)
    Stacking way
    Servo
    Servo
    Gantry
    Gantry
    Stacking H
    ≤1800mm
    ≤1900mm
    ≤2000mm
    ≤2000mm
    Equipmen size
    3800*1000*1400mm
    2620 * 2440 x 3500mm
    L8400 x W4700xH3700mm
    L8400xW5300xH3700mm
    Power
    380V 7KW
    380v/3P 7.2kw
    380v/3P 11kw
    380v/3P 12kw
    Air consumption
    0.8m3/min
    210L/min 6kg/cm²
    110L/min 6kg/cm²
    180L/min 6kg/cm²
    Conveyor H
    650mm
    650mm
    850mm
    850mm
    Palletconveyor H
    300mm
    650mm
    650mm
    650mm
    Max weight
    1000KG
    1500KG
    1500KG
    1500KG
    Features:

    1. Automatic Palletizing of cartons and plastic boxes;

    2. The main lifting table is driven by a servo motor, and the operation is flexible and smooth;

    3. The Machine structure: The main part of the machine is composed of the double-speed belt, pallet stack area, box-sorting area, Automatic Pallet supply system, hoisting machine, outbound chain conveyor system, etc.

    4. The Palletizing size and height can be adjusted freely;

    5. Siemens PLC control system, mobile man-machine interface, and automatic fault display are adopted;

    6. It can be used in food, beverage, daily chemical, and other industries;

    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer

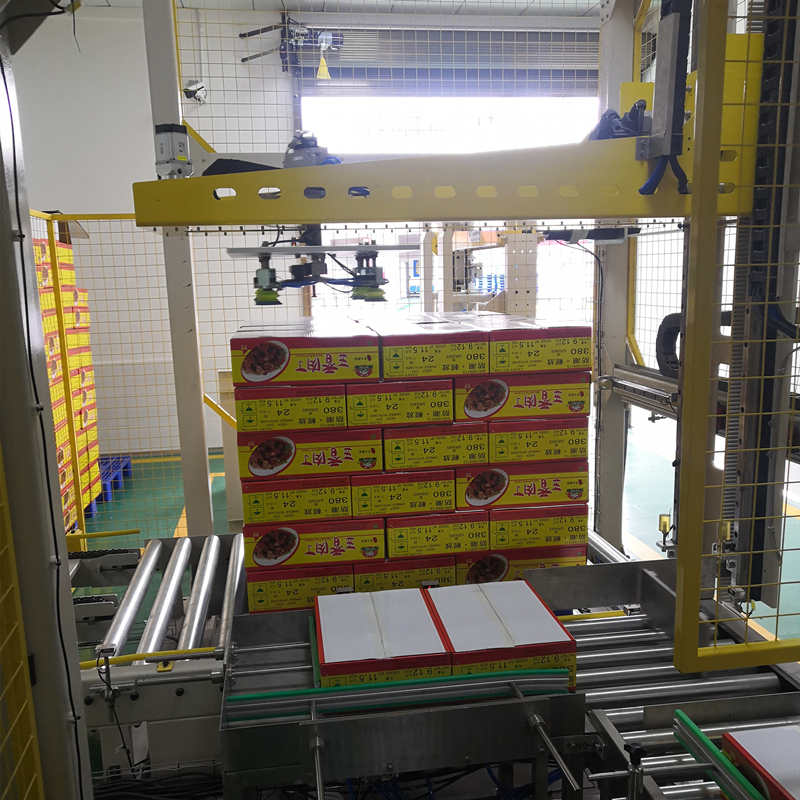

    Servo Palletizing Device
    Custom End Of Line Packing Servo Palletising Machine Cement Bag Carton Palletizer
    Carton Palletizer Area

    Why choose us

    Technical strength: 20000㎡ specialized and innovative super factory, 30+ patent certificates, 30+ engineers, production line machines covering more than 80+ countries around the world

    Production and export strength: 15 years of machinery manufacturing experience, 100+ single-machine equipment, providing comprehensive production line whole factory planning, annual export value of 80 million

    Installation and after-sales strength: 7*24 hours customer service, 40+ external engineers provide door-to-door installation and door-to-door maintenance services


    Shanghai LWT Intelligent Technology Co., Ltd is specialized in researching and manufacturing various whole set of packing production systems, such as Canned food production line, carton packing and palletizer system, automatic filling system, vacuum packing system, different kinds of conveyor system, labeling system and so on, our specialized engineer team will offer whole plant planning.
    Leadworld is a industrial and trade integrated enterprise with design, production, customization and installation capabilities, with import and export rights.
    We are an outstanding enterprise recognized by China canning association and vice President of canning association.
    Our company devote to digesting and absorbing advanced science of processing and automatic equipment.
    Welcome to visit us at any time, our equipment is ready to go, waiting at any time.



    Pre-sales:
    According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar

    video for client ref first.

    During Sales:

    1) Depends on the client's need to custom base on the standard machine.
    2) Repeat 20 ongoing hours testing equipment
    operation stability.
    3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.

    After-Sale:
    1. During the epidemic, we support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs;
    2. Supply systematic operation training for client workers.
    3. Guarantees all equipment (except human factors) within one year, lifetime maintenance services.
    4. After the client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years.
    5. If quality problems arise, the supplier provides technical support and timely supply wearing parts.


    FAQ

    Q1: What is your company’s main products?

    Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

    Q2: What is delivery date of your products?

    Delivery date is 30 working days usually most of the machines.

    Q3: What is payment term?

    Deposit 30% in advance and 70% before shipment the machine.

    Q4:Are you manufacturer or trading company?

    We are manufacture verified by ALIBABA and we have our own design team.

    Q5:Where are you located? Is it convenient to visit you?

    We are located in Shanghai. Traffic is very convenient.

    Q6:How can you guarantee quality?

    1.We have completed working system and procedures and we follow them very strictly.

    2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

    3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

    4.We will do strict test running after the machine is finished.

    5.Our machines are certified by CE.

    Q7:Can you design the machine according to our requirements?

    Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

    Q8:Can you offer overseas technical support?

    Yes. We can send engineer to your company to set the machine and train your worker if needed.
