    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer

    Ask Lasest Price
    Brand Name : LWT
    Supply Ability : 200 Set/Sets per Month Gantry Palletizing Machine
    Price : $29,800.00/sets >=1 sets
    • Product Details
    • Company Profile

    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer

    Product Description
    Packing Machine Automatic Stacker Gantry Palletizing Machine Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    LWT Palletizer series used fo food and beverage,chemical industry,etc.Package is suitable for all kinds of carton,plastic boxes,the stretch film and barrels,and other types of packing's stack,Machiner' s hosts include the double speed belt,streering mechanism,sorting box area,pallet carton area,mian part lifting mechanisby,pallet output roller line etc.
    More Questions, Please Consult Us!

    Working Process

    Run automatical include auomatic inputing box,veer carton,separate lines,Be piled in heaps,Remove,lifting,push pallet into,down,come out and other steps.
    Main Technical Parameters:
    Model
    LWT-PSS10A
    LWT-PSS10D
    LWT-PSG30
    LWT-PSG60
    Capacity
    5-12carton/min
    5-10carton/min
    20-30carton/min
    40-60carton/min
    Pallet Size
    L1200*W1200*150mm
    L1200*W1200*150mm
    Stacking way
    Servo
    Gantry
    Stacking H
    <1800mm
    <1900mm
    <2000mm
    <2000mm
    Equipment Size
    3800*1000*1400mm
    2620*2440*3500mm
    L8400*W4700*H3700mm
    Power
    380V 7KW
    380V/3P 7.2KW
    380V/3P 11KW
    380V/3P 12KW
    Air Consumption
    0.8m3/min
    210L/min 6kg/cm2
    110L/min 6kg/cm2
    180L/min 6kg/cm2
    Conveyor H
    650mm
    650mm
    850mm
    850mm
    Pallet Conveyor H
    300mm
    650mm
    650mm
    650mm
    Max weight
    1000KG
    1500KG
    1500KG
    1500KG

    Feature:

    Structural framework for the welding way,strong and durable and has adjustable base functions ,the main lifting platform USES the SEW motor drive,entry speed conveyor belt to separate into the box,entry expedite conveyor belt to separate into the box to separation,the stack area roller conveyor,2.5m chain conveyor output,free roller conveyor,use the safety protection device,USES Germany Siemens PLC control system.man-machine interface,portable fault atomatic display.

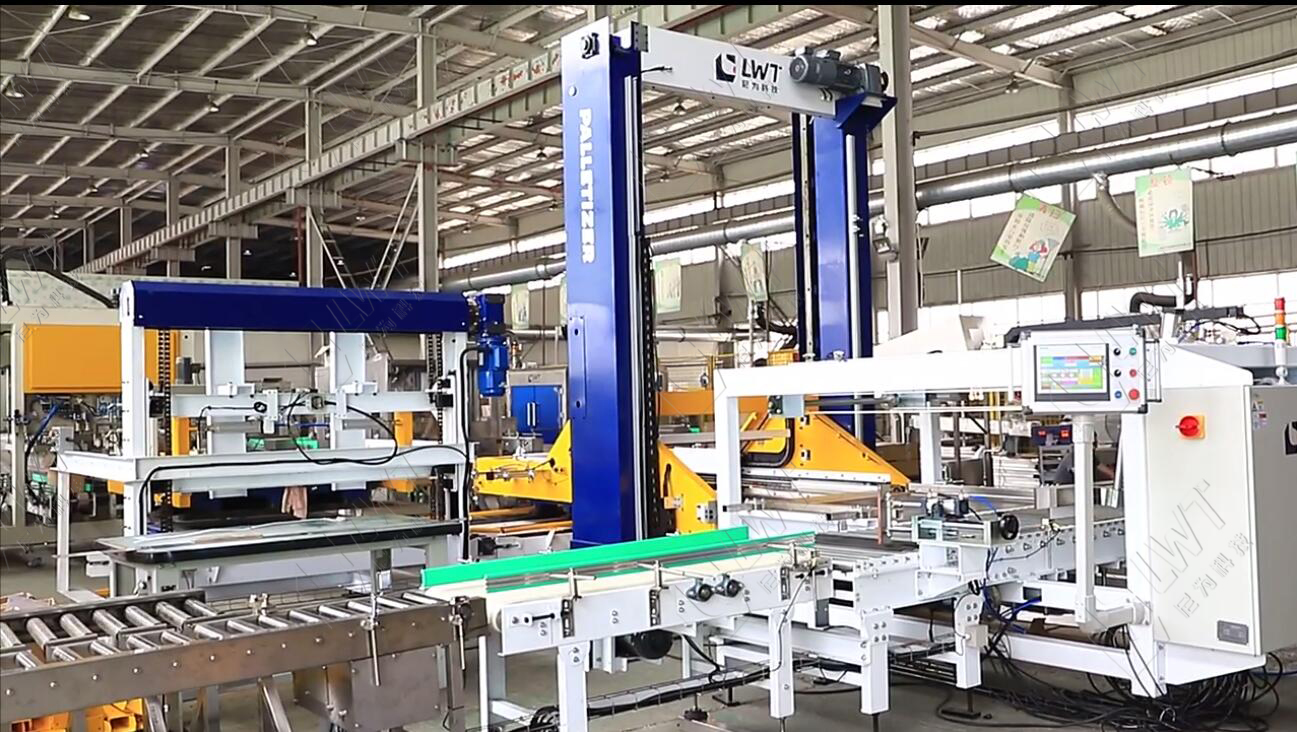

    Product Show
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Product Advantages
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Recommend Products
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer

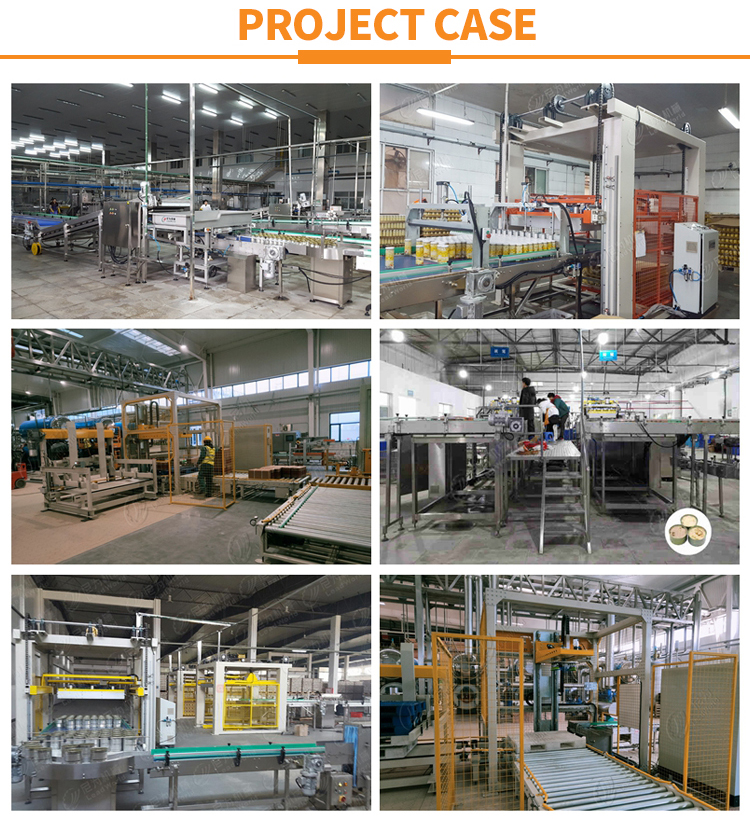

    Project Case
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Company Profile
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Packing & Delivery
    Automatic Gantry Case Palletizer Machine Tray Barrel Case Carton Bag Packing Palletizer
    Delivery Time: 35-65 days (according to product quantity) Packing: the inside is wrapped with a layer of film, and the outside is packed in wooden cases
    FAQ
    Q1: What is your company’s main products?
    filling machine, canned food production line, palletizers, sterilizers, conveyor belts, etc. If this is not the machine you want,
    please visit our other machines.

    Q2:Are you manufacturer or trading company?
    We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.

    Q3:Where are you located? Is it convenient to visit you?
    We are located in Shanghai. Traffic is very convenient.

    Q4:How can you guarantee quality?
    1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
    2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
    3.The electrical pneumatic components are from the world famous companies,
    such as Germany's Siemens, Japanese Panasonic etc.
    4.We will do strict test running after the machine is finished.
    5.Our machines are certified by CE.

    Q5:Can you design the machine according to our requirements?
    Yes. We not only can customize the machine according to your technical
    drawing, but also can make new machine according to your requirements.

    Q6:Can you offer overseas technical support?
    Yes. We can send engineer to your company to set the machine and train your worker if needed.

    Q7:If you will send a inquiry, what we should know:
    1. what's your product?
    2. what's your product size? like diameter and height?
    3. how many pcs do you want to process each hour?
    4. what's the sterilization time and temperature?
    5. what's the cooling temperature you need?
    If you have more questions on our product, please send us an inquiry in the below.
    Commonly, you will get reply in 24 hours.
