Tin Can Sardine Tuna Fish Beef Canning Machine Automatic Canned Meat Sealing Machine

Ask Lasest Price
Brand Name :	LWT
Supply Ability :	50 Set/Sets per Month
Price :	$6,600.00/sets >=1 sets

Add to Cart

Product Details
Company Profile

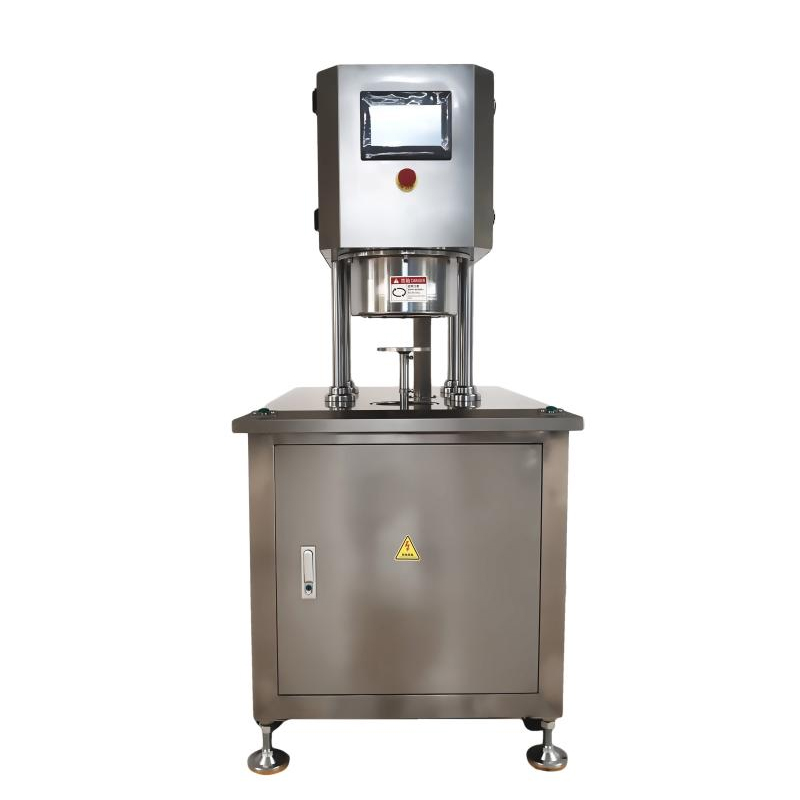

Tin Can Sardine Tuna Fish Beef Canning Machine Automatic Canned Meat Sealing Machine

Product Description

Product Features

This product is applicable to all kinds of tinplate cans, aluminum alloy cans, plastic cans, paper cans and other round cans. First vacuum, then fill nitrogen, and finally seal. With reliable quality, simple and light operation, it is an ideal equipment necessary for food, beverage, pharmaceutical and other industries.

Technical Parameters(Special specification can be customized)

Product Name	LW-8000A Semi-automatic Vacuum Nitrogen Can Sealing Machine
Material	304# Stainless Steel
Cans diameter	50-140mm
Cans height	50-200mm
Capacity	4-8pcs/min(or OEM)
Power	1.5KW/50Hz/220V
Machine size	L1050W800H1650 mm
Weight	300kg
Support bottle type	Tinplate cans, aluminum alloy cans, plastic cans, paper cans

Product Show

Product Features

1. The cover and main parts of the machine are made of 304# stainless steel; 2. The sealing elements of the vacuum system are made of silica gel; 3. Except that manual operation is required for tank and cover discharge, other vacuumizing and nitrogen filling are automatically controlled. The programmable controller of Zhongda Youkong brand is adopted, and the parameters can be set on the touch screen; 4. Imported accessories for main electrical components; 5. High precision digital display pressure sensor is used to detect vacuum pressure; 6. Oil free vacuum pump is used for vacuum pumping; 7. The whole process is carried out in a sealed chamber. 8. The whole production speed can be set on the touch screen according to the requirements, all common faults will alarm automatically, and the corresponding fault cause location will be given. According to the severity of the fault, PLC will automatically judge whether the host can continue to run or stop;

Product Details

Recommend Products

LW-CPC150 Capping Machine

Plastic Cup Sealing Machine

Semi-auto Closing Machine

Electric Can Sealing Machine

Semi-auto Vacuum Sealing Machine

GT4C3 Cans Sealing Machine

LW-B4B3 Electric Can Sealing Machine

Aluminum Foil Sealing Machine

LW-CPC350 Press Cap Machine

Optional Product

1.Empty Cans De-palletizer

Empty cans de-palletizer is mainly composed of lifting mechanism, moving mechanism, magnetic suction mechanism, conveyor and
electrical controlling system. The working way adopts magnetic suction and moving type. It can match with magnetic lifting conveying system, can transport product in the air and can transport product among different height of floor.

It can replace the manual ways arrangement and traditional empty can unloading machine, saving a lot of manpower and increasing production effects.

2.Empty Bottle washing and drying machine

The machine is used for tinplate can,ring-pull can continued cleaning,adopt steam heating way,temperature is adjustable,it adopt high pressure standard nozzle. It has good cleaning efficiency,reasonable structure,stable work performance,high efficiency,it is ideal equipment of canned food beverage production line.

Parameter

Name	Empty Bottle Washing Machine	LW-WM100
Capacity	50-300 bottle/min	50-100 cans/min
Washing Section	1-2 Section washing	1 Section washing
can diameter	40-150mm	40-150mm
Power	1.5KW	1.1KW

3.Auto Weight and Filling Machine

This machine is suitable for glass jar,iron cans,plastic jars,big mouth bottle and so on.Mainly used to Beans,Peach Flap,Peach
Strip,Hawthorn,Strawberries,Grapes,Apricots,Lychee,Braise in soy sauce meat.Mutton, pork,chicken,fish and so on,any kinds of solid products canning measuring and filling.

Model:LW-FWS50

Capacity:2400-3000bph

Measuring range:50g-2000g

Measurement accuracy:±2-10g

Moldel	Capacity	Filling volume
LW-FPP-4A	480bph-720bph	10-60g 30-100g 50-250g 100-500g 200-1000g 500-2500g 1000-5000g
LW-FPP-6A	960bph-1920bph
LW-FPP-8A	1440bph-2880bph
LW-FPP-10A	1920bph-3840bph
LW-FPP-12A	2400bph-4800bph

7.Filled Cans Washing and Drying Machine

It is applied to clean and dry outside surface of all kinds of canned fruit,canned meat,bottled sauce and all kinds of drinks.(specializedin washing and drying the adhensive sugar water and otheradhenionoutside of the sealed canned products or beverage),applying for tin cans,glass bottles and plastic bottles.

8.Wet Glue Labeling Machine

It Adopts enclosed transmission box,full mechanical transmission,

adhesive attached to various round bottle labels,stable and reliable.suitable for round pot labeling.

9.Filled Cans Palletizer/De-palletizer

Filled Cans Palletizer is suitable for palletizer and depalletizer of the filled glass bottles,filled tin cans,empty tin cans,it is main composed of conveying system and palletizing system.Working way uses magnetic grabmovement.

10.Carton Erector

The automatic boxopening machine is used to open the carton board, and the bottom of the box is folded according to a certain procedure, then sealed with tape to be delivered to the special equipment of the boxing machine.

11.Case Packer

Carton packing machine has the characteristics of simple structure, easy to maintain.Use Siemens PLC, Danfoss transducer,Schneider low-voltage electrical appliances and the SEW motor,the machine performance is stable and reliable .

Carton Palletizer

Palletizer is to stack the cartons loaded into containers on pallets and pallets (wood and plastic) according to a certain
arrangement for automatic stacking, which can be stacked in multiple layers and then pushed out, so as to facilitate forklift transportation to the warehouse for storage.

Company Profile

ShangHai LWT Intelligent Technology Co., Ltd.is one of the leading companies in China's canning equipment industry. Since its establishment in 2009, it has been in the canning industry for more than ten years. Its business covers more than 50 countries and regions around the world, focusing on automated canning and filling, The research and development, production, sales, and service of packaging production line equipment are committed to promoting the development and progress of society and the industry in order to achieve a more efficient, smarter and more sustainable future.

We have successively cooperated with many companies in the United States, Europe and other countries to develop automated production equipment with a high starting point and advanced technology. The main core accessories use internationally renowned brands, which can provide you with your choice Long-term and reliable guarantee.

In the past decade or so, LWT has successfully provided many domestic and foreign companies with canning, filling, and packaging production line solutions, Now we will offer you more and more production packaging line end of line solutions. Based on years of accumulated industry experience, we can also provide you with excellent and suitable products, services, and solutions.

Cooperative Customers

LWT has always adhered to the business philosophy of innovation leading development, quality winning the market, and customer service first. With the goal of becoming the world's leading canning automatic production Packing line solution expert, it is committed to guiding the Production Packaging line industry's machinery production standards and actively promoting the improvement of the canning & Packaging industry's mechanical automation level.

LWT is not only our ambition but also the inexhaustible driving force for our struggle. Looking forward to the future, LWT will carry the innate vitality and passion, the same as usual, make excellent, practical, stable, and user-friendly high-quality products, and bring customers cost-effective quality choice, long-term economic benefits, and sustainable development.

We are willing to join hands with you to grow up, seek common development and create a better future! More details about LWT Machinery, pls to contact us any time:).

Our Service

Pre-sales: According to client-specific machinery or automatic product line requirement, supply reasonable machine sketch map, quotation, and similar video for client ref first.

During Sales: 1) Depends on the client's need to custom base on the standard machine. 2) Repeat 20 ongoing hours testing equipment operation stability. 3) Execute GMP certification for the equipment and materials used in the production process requirement and specification strictly.

After-Sale: 1. During the epidemic, we are support senior engineers to provide one-by-one video guidance; And other times, we will assign professional engineers to customer companies for installation or maintenance services according to customer needs; 2. Supply systematic operation training for client workers. 3. Guarantees all equipment (except human factors) within one year, lifetime maintenance sevices. 4. After client use the machine for several years, we can provide a detailed refurbishment program, the original equipment and replacement of hardware and software upgrades, extend machine service life for more than 3-4 years. 5. If quality problems arise, the supplier provide technical support and timely supply wearing parts.

FAQ

Q1: What are your company’s main products? A: All production canned packaging line end of the line and Related Packaging Machinery. If this is not the machine you want, please visit our other machines.

Q2.Are you a manufacturer or trading company? A: Yes, We are a manufacturer verified by ALIBABA and we have our own R&D and Production team

Q3.Where are you located? Is it convenient to visit you? A: Yes, We are located in Songjiang Shanghai, traffic is very convenient. Welcome to our factory anytime

Q4: How can you guarantee the quality? A: 1. We have completed the working system and procedures and we follow them very strictly. 2. Our different worker is responsible for different working process, their work is confirmed, and will always operate this process, so very experienced. 3. The electrical pneumatic components are from world-famous companies, such as Germany's Siemens, Japanese Panasonic, etc. 4. We will do strict test running after the machine is finished. 5. Usually our machines are certified by CE. Also, Leadworld machines can be passed the relevant certification standards of the customer market according to customer needs

Q5: Can you design the machine according to our requirements? A: Yes. We not only can customize the machine according to your technical drawing but also can he new machine according to your requirements.

Q6: Can you offer overseas technical support? A: Yes. We can send the engineer to your company to set the machine and train your worker if needed.

Q7: Why do our customers trust and choose us?

A: 1. Leadworld is a company with more than 12 years experience in canning production line customization 2. Serving 200+ overseas customers, 50+ customers all over the world 3. Support third-party online transactions to ensure the safety of funds 4. On-site installation and training services are available 5. Support video inspection or third-party inspection
