    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

    Ask Lasest Price
    Brand Name : LeadWorld
    Certification : CE and according to your market
    Supply Ability :
    Price : Price Negotiable
    • Product Details
    • Company Profile

    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

    Main Features:

    1.Vertical storage,cartons can be added at any time without stopping the machine.

    2. Suitable for forming and sealing cartons of the same size.

    3.Manually adjust to change the carton sizes(finishing in 2-3minutes).

    4. Advanced photo electricity induction control system.

    5.Rationally designed,the forming,folding and sealing process are accomplished simultaneously.

    6.Cutter Safety system to prevent hands form stabbed by the cutter

    7.Heavy duty built,both steel and stainless steel types.
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Leadworld carton erector let cartons placed in the machine's storage board manually, the machine will automatically pull the carton shape, automatically folded the bottom of the page, and automatically sealed. The carton erector is a Semi-auto carton sealing machine that can fold the bottom cover of a carton and seal it; it can be operated separately, economical and high-efficiency, which is an ideal packaging machine
    below please check the leadworld carton erecting machine more main technical parameters:
    Model
    LW-EV18
    LW-EH30
    LW-EH50
    Capacity
    18pcs/min
    30pcs/min
    50pcs/min
    Carton collecting
    100pcs(1000mm)
    80pcs(800mm)
    80pcs(1000mm)
    Carton size
    L:250-400mm
    W:150-350mm
    H:100-350mm
    L:240-510mm
    W:190-400mm
    H:120-400mm
    L:250-450mm
    W:150-400mm
    H:100-300mm
    Power
    220V 1Φ 200W
    380V 3Φ 746W
    380V 3Φ 746W
    Air Consumption
    0.6Mpa 450NL/min
    0.5Mpa 300NL/min
    0.5Mpa 300NL/min
    Machine Size
    L2400*W1200*H1450mm
    L2372*W1210*H1820mm
    L3120*W1250*H1740mm
    Belt Size
    48,60,75mm
    2'',2.5''
    2'',2.5''
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

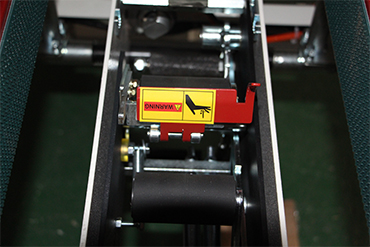

    Replace The Tape Quickly
    1.The carton erector with a protective door.replacing tape conveniently and safely as the door opens.
    2.Automatic Buckle Design
    3.Upgrade design, A material through the fixed bracket without push carton board automatic buckle, lock material through which is convenient for the user.
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Folding Front And Rear Board
    4.Upgraded mechanism of folding front and rear board, cartons can be formed faster. stable and endurable

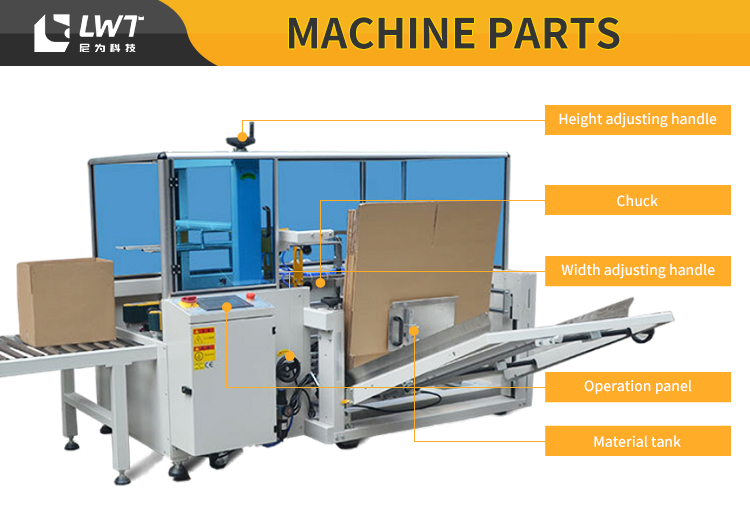

    5.The carton sealing machine's width and height can be adjusted manually according to the carton specifications, and the operation is simple and convenient.
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Endurable Conveyor Belt
    6.Leadworld vertical carton erector machine uses an endurable conveyor belt with strong friction that can transport steadily.
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    7.When the tape is broken or used up, the alarm will make sounds automatically. it convenient for users to change and adjust in time.
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

    8.Leadworld provides customizable horizontal or vertical cartons trough according to your packaging type.

    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Multiple-Size Cartons
    Customize your carton erector machine according to your carton packing size and packer method
    Leadworld Conventional Carton Erector Machine:
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

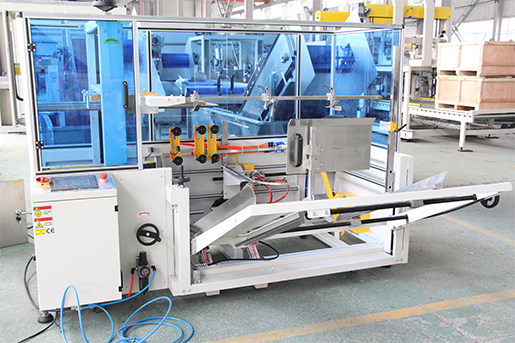

    Vertical Carton Erector Machine
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Horizontal Carton Erector Machine
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Leadworld Global can supply solutions for the whole set of automatic production filling, packing, and logistics systems. Contact us to get complete Back End Of packaging line solutions:
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

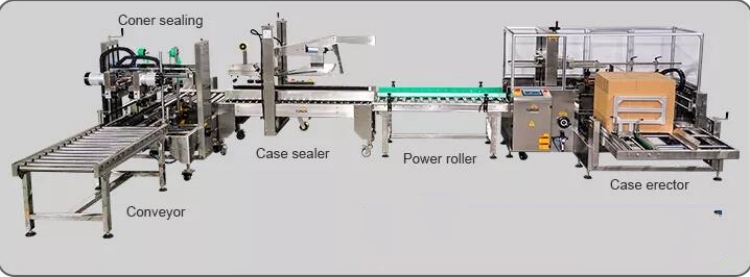

    Packing Line Solutions Case: Carbon Steel Spray Carton Packing Line
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector
    Packing Line Solutions Case: Stainless Steel Carton Packing Line
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

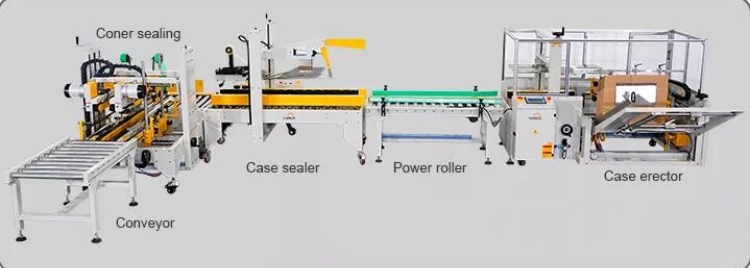

    Packing Line Solutions Case: Carton Packing Line with Weighing and Labeling
    End Of Line Packing Machinery Automatic Carton Unpacking Machine Case Erector

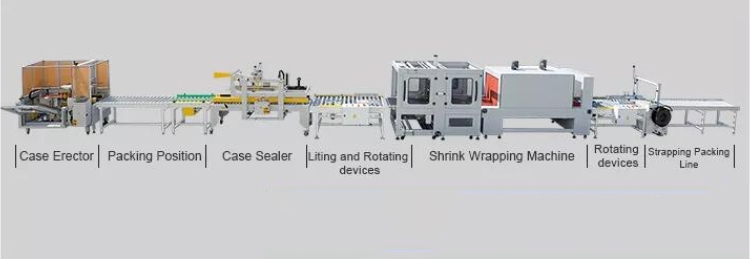

    Packing Line Solutions Case: Carton Packaging Line With Shrink And Strap

    FAQ

    Q1: What is your company’s main products?

    Canning production line, filling production line, prepared vegetable production line and packaging production line, various stand-alone equipment (bottle washing machine, filling machine, labeling machine, cartoning machine, palletizer, conveyor line, etc.)

    Q2: What is delivery date of your products?

    Delivery date is 30 working days usually most of the machines.

    Q3: What is payment term?

    Deposit 30% in advance and 70% before shipment the machine.

    Q4:Are you manufacturer or trading company?

    We are manufacture verified by ALIBABA and we have our own design team.

    Q5:Where are you located? Is it convenient to visit you?

    We are located in Shanghai. Traffic is very convenient.

    Q6:How can you guarantee quality?

    1.We have completed working system and procedures and we follow them very strictly.

    2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.

    3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.

    4.We will do strict test running after the machine is finished.

    5.Our machines are certified by CE.

    Q7:Can you design the machine according to our requirements?

    Yes. We not only can customize the machine according to your technical drawing, but also can he new machine according to your requirements.

    Q8:Can you offer overseas technical support?

    Yes. We can send engineer to your company to set the machine and train your worker if needed.
