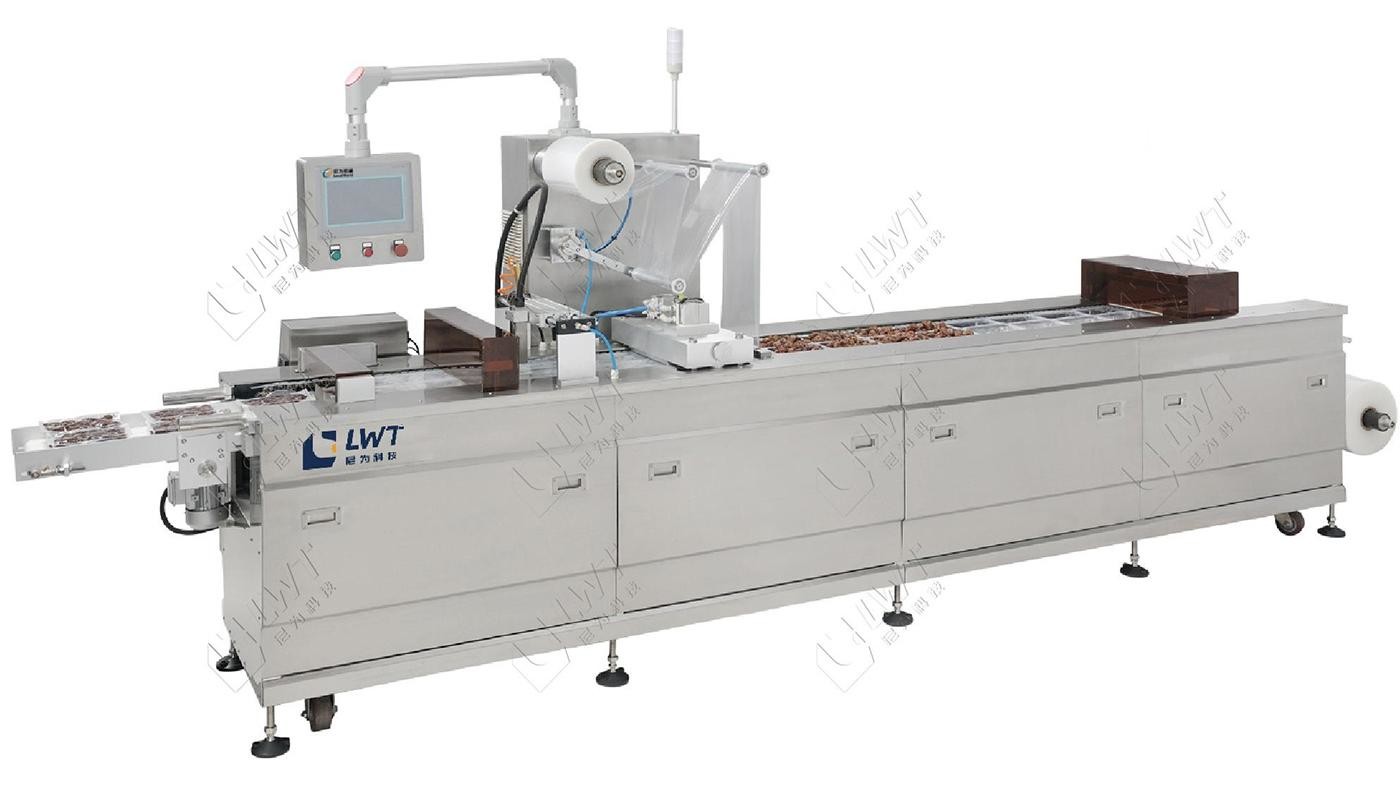

Product Description:
Auto thermoforming & vacuum packing machine adopts stretchable and
thermoplastic soft film or hard sheet to form container,and
vacuuming or MAP sealing and cutting after filling.It does not need
to customize the packaging box in advance, and integrates the
functions of film stretching, filing materials, vacuuming and air
conditioning, heat sealing and sliting.lt has the characteristics
of convenience, low energy consumption,short cycle and high
efficiency.
Features:
- Machine is made of 304 staintess steel,easy to clean.
- With German Siemens programmable controller(PLC)and touch screen,
simple to use, easy to operate.
- The machine equipped with orginal BUSCH vacuum pump which is
imported from Germany. lt quarantees machine performance stable.
High vacuum, stable quality, durable and reliable.
- Strong adaptability for the packacing materials and packacing
specifications, Can be arbitrarily selected within the specified
range.
- Japanese Panasonic servo system driver, running steady and rapid
and accurate.
- Only need to change mould. Can be used to diferent specifications
of products on one set of machine.
- On the basis of vacuum extraction, can input all kinds of mixing
gas, can extend fresh time.
- Corner waste recvcling system for environmental sanitation.
Technical Parameters:
Model
Parameter | LW-TR/TH320 | LW-TR/TH420 | LW-TR/TH520 |
| Packing Speed | 4-8Cycles/Min | 4-8Cycles/Min | 4-8Cycles/Min |
| Bottom Film Thickness | ≤0.8mm | ≤0.8mm | ≤ 0.8mm |
| Bottom Film Width | 322mm | 422mm | 522mm |
| Top Film Width | 293mm | 393mm | 493mm |
| Power Supply | AC 380V50HZ(3Phase) | AC 380V50HZ(3Phase) | AC 380V50HZ(3Phase) |
| Air Consumption | 500L/Min | 550L/Min | 650L/Min |
| Air Supply | ≥0.6MPa | ≥0.6MPa | ≥0.6MPa |
| Power | 10KW | 12KW | 15KW |
| Dimension | 4500*1000*1700mm | 5200*1100*1760mm | 6000*1200*1760mm |
| Weight | 1300kg | 1600kg | 2200kg |
Applications:
Vacuum packing machine is the ideal solution for various products
requiring a high degree of vacuum and a long shelf life. It is
widely used in the food, pharmaceutical, and medical industries.
Vacuum packing machine is an automated thermoforming and vacuum
packing machine that can achieve a vacuum degree of 0.1MPa, a
voltage of 220V, a capacity of 2-3 bags per minute and a power
consumption of 1.5KW. With its excellent performance, it can
effectively reduce the oxygen content and preserve the freshness
and flavor of all kinds of food, medicines and other products. It
can also protect sensitive products from dust, moisture, and other
external factors, ensuring the product quality and shelf life.
Moreover, the Vacuum packing machine has a compact structure and
small size, which makes it easy to install and transport.
The Vacuum packing machine is a reliable and efficient equipment
for vacuum packing various products in the industries of food,
pharmaceutical, and medical. It can effectively prevent the
oxidation of food, reduce the loss of nutrients, keep the product
fresh and extend its shelf life. In the pharmaceutical and medical
industries, it can be used to store and protect sensitive products
from dust, moisture and other external factors. With its advanced
technology and powerful performance, the Vacuum packing machine can
provide a safe and reliable packaging environment for all kinds of
products.
Support and Services:
Vacuum Packing Machine Technical Support and Service
We offer a wide range of technical support and services for our
Vacuum Packing Machine. Our team of experienced technicians can
provide on-site support, remote support, and telephone support.
On-site support includes:
- Installation and setup of the machine
- Troubleshooting, repairs, and maintenance
- Training on the use of the machine
