1.Filling(←Botte washing←Depalletizer)→2.Lid Covering→3.Labeling→4.Carton Erector→5.Carton Packer→6.Carton sealer→7.Case Palletizer→8.Shipments

Features:

1.Qty of filling head: 2~12 head (depending on the designing).

2.Filling capacity: 50ML-5000ML (Compatible filling capacity tolerance for a single machine is one times. To be determined by customer requirements).

3.Filling method: Equal-liquid level self flowing type.

4.Filling speed: 6~8 bottles/min. head (500ml bottle)

5.Filling accuracy: ±1%.

6.Program control: PLC + touch screen.

7.Main materials: #304 stainless steel, PVC used in food industry.

8.Air pressure: 0.6-0.8Mpa.

9.Conveyer belt: Stainless steel chain belt of 82mm in width. Speed: 0-15m/min. Distance away from the ground: 750mm±25mm.

10.Conveyor motor: 370W frequency conversion speed regulation motor.

11.Power: 1KW/220V single phase.

12.Capacity of material tank: 200L (with liquid level switch). 13.Protective device: Outage alarm on shortage of liquid in the reservoirtank.

Related Machines:

Capping Machine

1,Automatic capping machine with high speed, high qualified rate and convenient operation.

2,The whole machine is made of stainless steel and is easy to clean.

3,Suitable for glands of plastic barrels such as sauces, oils, paints, and latex paints.

Automatic Double Side Labeling Machine

Features: LW-901 is mainly composed of SUS304 Chassis; Chain Plate Conveyor Line;Separation Correction; Synxhronition Crimping;Dual-head;Universal Adjustment Sponge Wheel and other institutions,use.Siemens PLC,touch screen;Servo motor as the main compenents,control devices run at high speed.Equipment safety,efficiency,and stability;comply with GMP,CE specifications. Friendly operation interface,easy setting. Mainfunction: product count, output setting, parameters memory, equipment state monitoring,device failure automatic shutdown,alarm fault location and help information.

Case Packer

The fully automatic case packer is widely used in industries such as food, daily chemicals, and chemicals. It is mainly used for packaging bucket-packed jams, concentrates, beverages, and various canned products.

The fully automatic case packer is composed of a frame, bottle feeding conveyor, box feeding conveyor, bottle suction unit, box opening mechanism, and electrical cabinet.

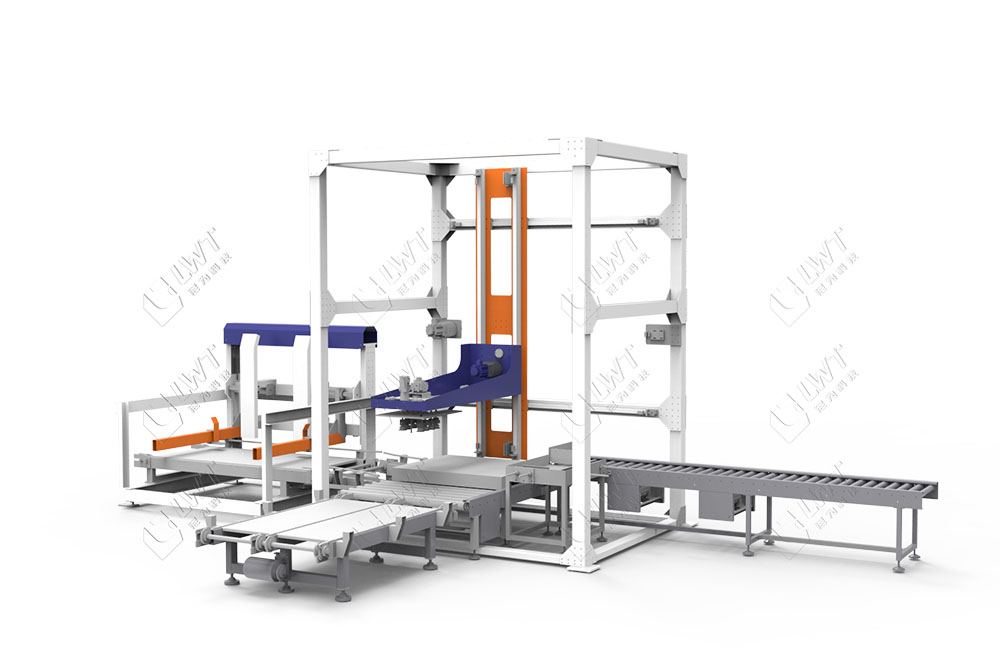

Gantry Palletizing Machine

This palletizer is used in food and beverage, chemical and other industries; it is suitable for stacking various types of packaging such as cartons, plastic boxes, film bags and barrels. The main machine of the equipment is divided into differential belts, steering mechanisms, discharge It is composed of box area, box coding area, main lifting mechanism, stacking roller and other parts. The palletizer has a frame-like appearance, takes up little space, and has low noise and pollution.

Customization:

Our Customized Tomato Sauce Filling Production Line is designed to meet your specific needs. It has a high production capacity and can be customized to fit your exact requirements. It is powered by a 220V/380V power supply and has an air pressure range of 0.4-0.6MPa.

Support and Services:

Our Filling Production Line technical support and service includes:

• 24/7 online technical support
• On-site installation and commissioning
• Operation and maintenance training
• Regular maintenance and repair services
• Replacement parts and components
• Fault diagnosis and troubleshooting
• Product upgrades and updates
• Consulting and advisory services

Packing and Shipping:

The Filling Production Line is packaged and shipped with the following components:

• Filling Machine
• Bottle Rack
• Filling Nozzle
• Control Panel
• Cables and Wires

The components are packaged in an industry-standard box and shipped using a reliable courier service.
